100Gbps PM-QPSK保偏高速相干接收机PicoMetrix CR-100D; 超小尺寸封装; 内部集成了解调器和平衡探测器以及带宽调节, 支持DP-QPSK调制格式. 本探测器适合100Gbps/200Gbps相干光传输系统.

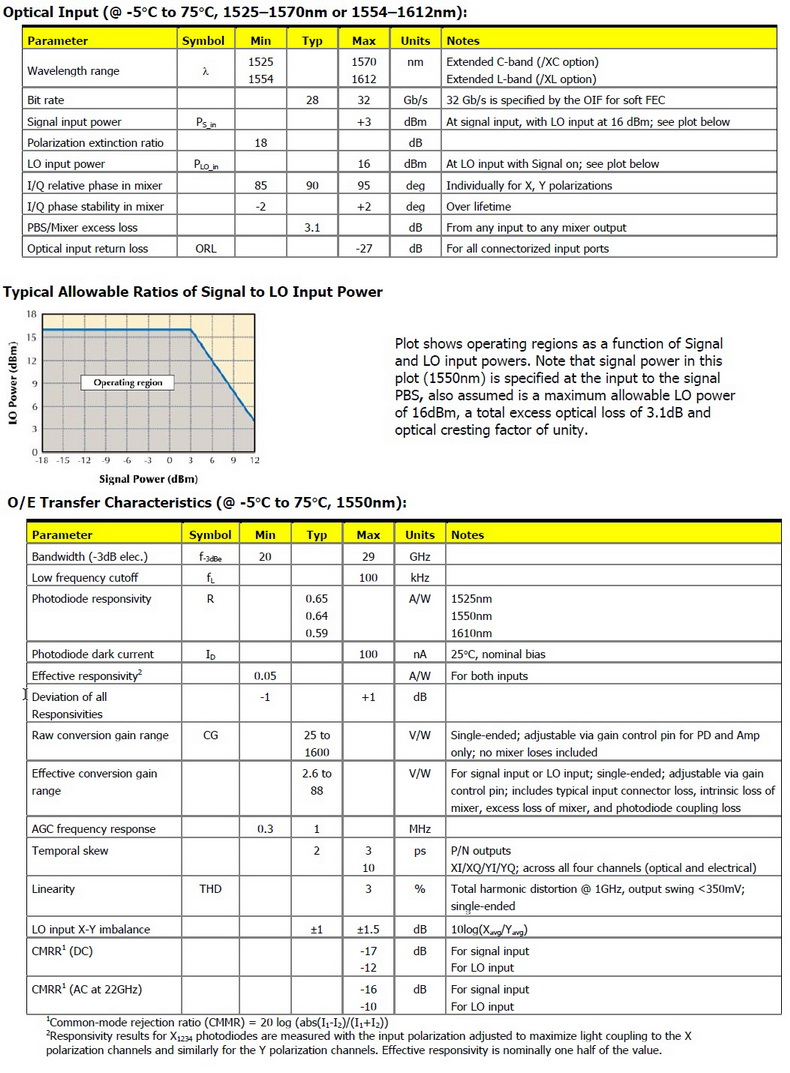

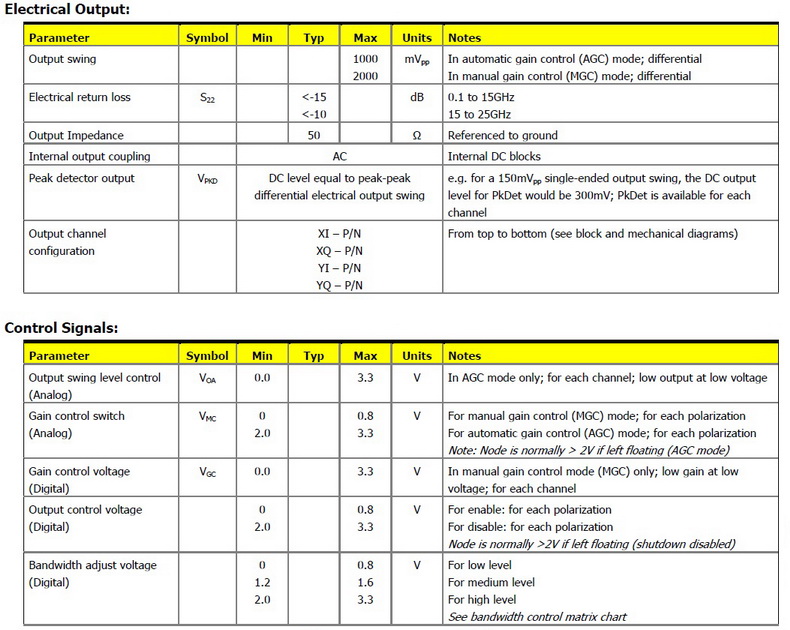

100Gbps Coherent DP-QPSK Receiver, PicoMetrix CR-100D, PBS and 90Deg. Hybrid Integrated
The coherent receiver module CR-100D consists of an integrated polarization beam splitter and four balanced photo-receivers monolithically integrated with optical 90° hybrids. The receiver is a fully differential optical front-end suited for 100 Gbit/s DP-QPSK applications featuring high linearity and high common mode rejection ratio. The optical 90° hybrids demodulate the I/Q incident signal for each respective polarization state using external reference oscillator laser sources. The mixing products are detected by PIN-photodiodes and amplified by trans-impedance amplifiers (TIA) with linear transfer characteristics.
Features
• Integrated receiver for 100G intradyne coherent applications
• Compliant with CCRx Multisource Agreement (MSA) for coherent receivers
• Single unit contains dual mixers and 4-channel 32 Gb/s linear balanced receivers
• Manual or automatic gain control with peak detect function
• Integrated local oscillator (LO) splitter and internal PBS required for signal splitting
• Compact, surface mount package with four differential coplanar GSGSG output channels
• Module is consistent with OIF 100G Integrated Rx Implementation Agreement
• Extended C-band (XC) and extended L-band (XL) wavelength options available
• New: lower noise, improved linearity, higher input power, digital bandwidth control
Applications
• 100 GBit/s Ethernet Transmission Systems
• Dual polarization coherent detection QPSK receiver
• Intradyne and homodyne coherent detection

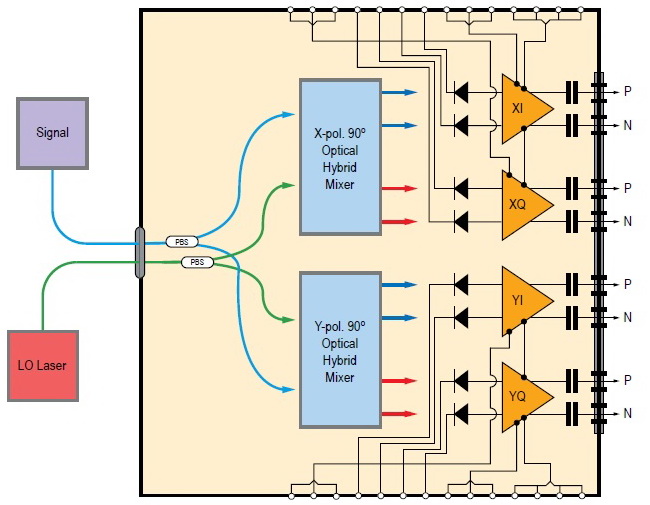

Block Diagram
