DP-QPSK/16QAM马赫泽德调制器, 四臂RF驱动, 3dB带宽典型值40GHz, 最高支持64GBaud, 数据率可达400Gbps; C+L波段工作.
400Gbps DP-xQAM LN Modulator, Fujitsu FTM7992HM
This optical modulator is a Ti:LiNbO3 DP-QPSK Single-Drive Mach-Zehnder modulator with modulation speed of up to 64Gbaud.
This modulator comprises 3dB coupler, two QPSK modulators, polarization rotator followed by the polarization beam combiner and the built-in monitor PD chips for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena.
The 64Gbaud LN Modulator (FTM7992HM) is a 400Gbps PM-xQAM Lithium Niobate Modulator.
Feature
• Supporting 200G DP-QPSK/400G DP-xQAM transmission format
• Compact size: 81.7 x 12.5 x 6.5 (mm)

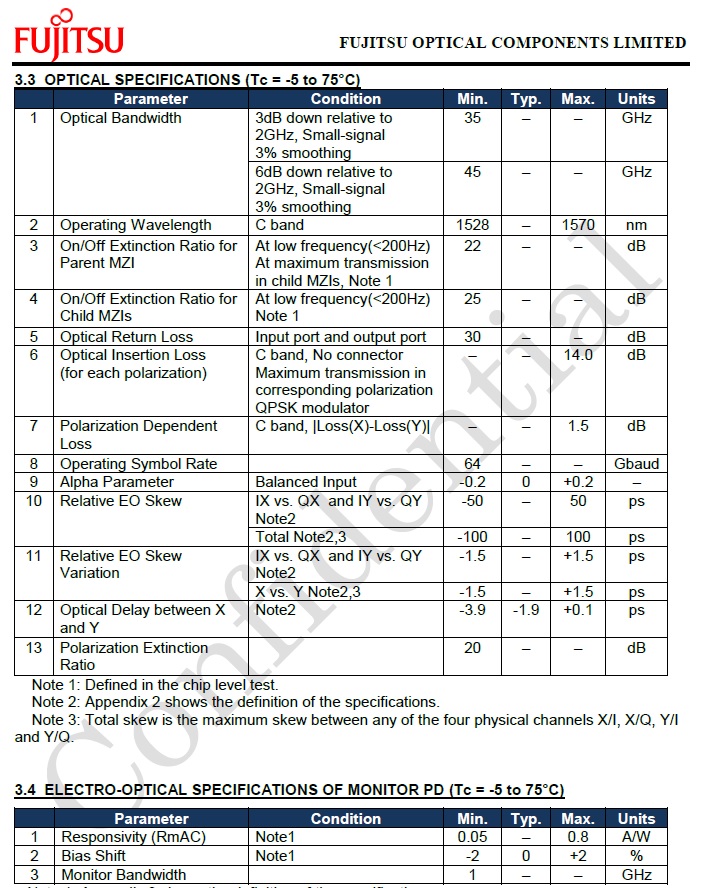

• Bandwidth: 35GHz@3dB, 45GHz@6dB, Symbol Rate up to 64GBaud
• Drive Voltage Vπat each electrode: 4.2V@64Gbaud, 3.5V@
• OIF HB PMQ modulator Compliant (under discussion)
• RoHS compliant
Application
• 200G DP-QPSK optical transmission equipment
• 400G DP-xQAM optical transmission equipment
