此模块支持C波段的电吸收调制, 3dB带宽30GHz以上, 速率可达40Gbps以上, 保偏尾纤输入输出. 内置温控电路, 保障了电吸收器的性能稳定和持续可靠.
DESCRIPTION
The Electro-Absorption Modulator module consists of electro-absorption modulator with built-in cooler. The modulation signal is applied to the modulator while the CW laser propagating through electro-absorber allowing low wavelength chirping. The module includes an thermistor and a thermo-electric cooler to stabilize the performances. It is polarization maintaining fiber coupled.
FEATURES
Low Chirp, High Extinction Ratio
Low Operating Voltage at 40 Gbps
High Bandwidth and Built-in TEC
APPLICATIONS
High-speed Optical Fiber Communication
Microwave Photonics
SPECIFICATIONS
| Parameter | Unit | Specification |
| Operating Wavelength | nm | C Band |
| Optical Input Power | mW | Max. 20 |
| EO Bandwidth | Hz | >=30G |
| Data Rate | bps | DC-40G |
| Insertion Loss | dB | <=9.0 |
| Polarization Extinction Ratio | dB | >=23 |
| Extinction Ratio (at DC) | dB | >=17 |
| Extinction Ratio ( at 40Gbps) | dB | Typ. 8 |
| Input Driver Swing | Vpp | <= 3.0 |
| Input Driver Offset | V | -2.0 ~ 0, Typ. -1.2 |
| Chirp Parameter(@Vbias = -1V )** | – | ±0.1 |
| Internal Temperature Stability | ℃/H | 0.1 |
| RF Input Port | – | 50Ohms, K type Female |
| Optical Input and Output Port | – | PMF with FC/APC |
| Operating Temperature | ℃ | 0 ~ 50 |
| Storage Temperature | ℃ | -20 ~ 70 |
| Relative Humidity | % | 20~90 (Non-condensation) |
| Power supply* | – | DC 5V, 1A (Module) |
| Dimensions (L×W×H)* | mm | 100×80×20 (Module) |
Note: *The specifications subject to change without notice. ** The chirp varies from +1 to -1, When Vbias varies from 0V to -2V
ORDER INFORMATION
EAM-1-2-3-4-5
| 1 | 2 | 3 | 4 | 5 |
| Package | Data Rate | RF Connector | Fiber Type | Connector |
| M=Module | 10=10Gbps | SMA=SMA | P=PM fiber | FA=FC/APC |
| 40=40Gbps | XXX=Customize | S=SM fiber |

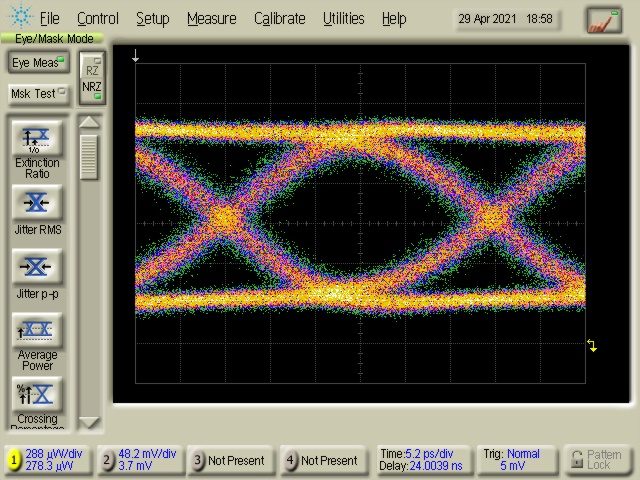

Typical Eye Diagram at 32Gbps
