  • 400G速率 相干接收机评估板套件 uICR Class 40 美国 Neophotonics

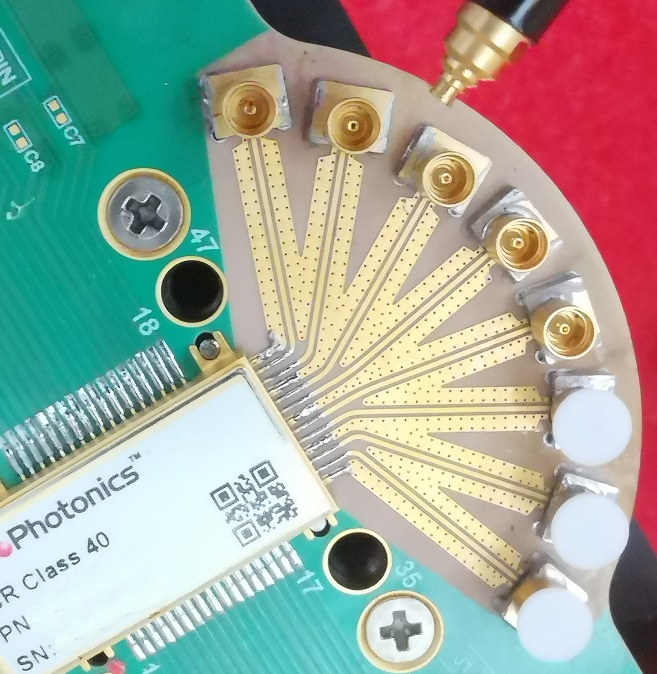

400G速率 相干接收机评估板套件 uICR Class 40 美国 Neophotonics

新飞通Neophotonics光电探测器400Gbps PM-QPSK高速相干接收机/探测器; 超小尺寸封装. 内部集成了Hybrid和四路40GHz高带宽平衡探测器, 支持DP-QPSK/16QAM调制格式. 本探测器适合400Gbps相干光传输系统. C或L波段可选. 注: 本公司出售400Gbsp高速相干接收机, 带全套评估板及配套用户软件. 简单易用, 非常适合研究和开发人员使用.

产品详情

新飞通Neophotonics光电探测器400Gbps PM-QPSK高速相干接收机/探测器; 超小尺寸封装. 内部集成了Hybrid和四路40GHz高带宽平衡探测器, 支持DP-QPSK/16QAM调制格式. 本探测器适合400Gbps相干光传输系统. C或L波段可选.

注: 本公司出售400Gbsp高速相干接收机, 带全套评估板及配套用户软件. 简单易用, 非常适合研究和开发人员使用.

Product Overview

Designed for high baud rate line cards, the NeoPhotonics High Bandwidth Coherent Receiver provides advanced demodulation to analyze the state-of-polarization and optical phase of a phase-modulated signal relative to an externally-supplied optical reference. This enables the recovery of the phase-polarization constellation of 200 Gbps Dual Polarization Quadrature Phase Shift Keyed (DP-DQPSK) format signals as well as 400 Gbps 16-QAM (Quadrature Amplitude Modulation) format signals. The High Bandwidth ICR incorporates four balanced photodiodes with four differential linear amplifiers to provide four output channels at 64 GBaud and above. The form factor of the High Bandwidth Coherent Receiver is compliant with Optical Internetworking Forum standard Implementation Agreement for Micro Integrated Intradyne Coherent Receivers; IA # OIF-DPC-MRX-02.0.

Features

Compliant with OIF Implementation Agreement for Type 1 Micro ICR Class 40C-band, C  band versions available

Designed for 3dB EO Bandwidth of 40GHz

Integrated Signal Input Power Monitoring and Variable Attenuator

Benefits

DWDM Metro and long-haul systems

Coherent 400G 16-QAM applications

Submarine long-haul transmission

Intradyne and homodyne coherent detection
