  • 100G速率 相干接收机评估板 ICR-100-EVK 日本Fujitsu FIM24706

100G速率 相干接收机评估板 ICR-100-EVK 日本Fujitsu FIM24706

相干接收机评估板套件, 工作于C波段, 可用于 QPSK / PM-QPSK / BPSK / 4QAM, 16QAM, 64QAM 光信号的解调与探测. 整个评估板分为供电主控板和高速射频信号扇出板. 其中主控部分包含PD偏压控制, 及TIA增益控制, AGC与MGC切换, 输出幅值调整等功能, 射频转换板主要实现4路高速IQ模拟信号的扇出. 非常适合从事相干通信的研究开发单位使用.

产品详情

相干接收机评估板套件, 工作于C波段, 可用于 QPSK / PM-QPSK / BPSK / 4QAM, 16QAM, 64QAM 光信号的解调与探测. 整个评估板分为供电主控板和高速射频信号扇出板. 其中主控部分包含PD偏压控制, 及TIA增益控制, AGC与MGC切换, 输出幅值调整等功能, 射频转换板主要实现4路高速IQ模拟信号的扇出. 非常适合从事相干通信的研究开发单位使用.

本产品套件标准配置包含整个评估板和PC端的操作软件. 相干探测器ICR随评估版预先焊接好交付.

DP-QPSK 40 / 100 Gbps Coherent Receiver Evaluation Kit, ICR-100-EVK

General Description

The ICR-100-EVK is an O/E evaluation kit designed to convert QPSK / PM-QPSK / BPSK / QAM (16QAM, 64QAM)optical data to differential electrical signals.  It consists of coherent receiver (Fujitsu FIM24706/301), daughter adapter board, and mother power and control board. The ICR-100-EVK offers several user-adjustable characteristics such as RF gain, PD bias, and mode of operation, Auto Gain Control (AGC) or Manual Gain Control (MGC) and is ideally suited for a variety of applications. Additionally, the output voltage swing adjustment is available.

Key Features

  • Four well-matched Linear Balanced PIN/TIA Photo-receivers.
  • Integrated Dual-Polarization 90 Degree Optical Hybrid.
  • Two modes of operation: Automatic and Manual Gain Control.
  • Independently adjustable differential gain, and RF output voltage swing.
  • Bias voltage independently tunable for all photodiodes.
  • Easy-to-use lab evaluation kit, with graphic user interface on Windows operating system.
  • Single DC-12V power supply, and virtual USB control port.

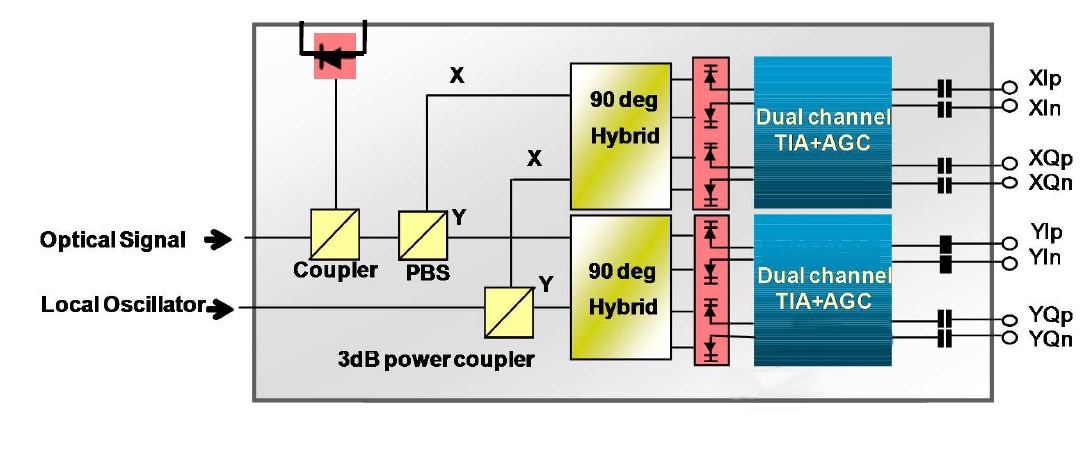

ICR Block Diagram

Typical Applications

  • Dual Polarization I/Q Transmitter Characterization, QPSK /PM-QPSK/ QAM (16QAM, 64QAM).
  •  Intradyne Link Testing.
  • High Speed ADC and DSP Development.

Specifications

ParameterUnitMin.Typ.Max.
Operating Wavelengthnm152715501567
Baud RateGBaud25
Optical Input Power SignaldBm-200
Optical Input Local  OscillatordBm+3+13
Optical Return Loss    dB27
Maximum Output Voltage SwingmVpp9001200
Total Harmonic Distortion at 1 GHz%2
Phase Error for HybridDeg-7.5+7.5
Optical SensitivitydBmTyp. -18@1550nm
Polarization extinction for Sig & LO   dB20
Photodiode dark current/PDnA1
PD Bias and AmplifierV3.1353.33.465
Common Mode Rejection RatiodB-20
RF Skew: P, Nps2
Signal  Output and CoupleDifferential, AC Coupled
RF Output PortGPPO Malex8
Optical Fiber and ConnectorSM28-e, FC/APC
Operating Temperature0 ~50
Power supply*DC 12V

ORDER INFORMATION

RX-ICR-1-2-3-4

1234
PackageBandwidthWavelengthConnector
B=EVB25=25GHzC=C bandFA=FC/APC
D=BenchtopL=L bandLC=LC/PC

CONSTELLATION PERFORMANCE
