本模块以极为紧凑的尺寸集成了InP材料MZM调制器, DFB激光器, 波长1550nm, 可支持40Gbps NRZ格式光信号传输. 内有温度和功率控制措施. 具有静态功率和波长高度稳定, 高动态性能高可靠性等特点. 是短距离传输的紧凑和高性价比解决方案.
DESCRIPTION
The NRZ transmitter module consists of InP Mach Zehnder Modulator and conventional Distributed Feed-Back (DFB) laser. The modulation signal is applied to the integrated MZM modulator while the laser works in CW mode. The internal thermal and power control make the wavelength and optical power highly stable. And non-drifting feature of InP MZM guarantees the performances of NRZ transmission over long term. The compact size and low cost makes it ideal for NRZ transmission or stress test up to 40Gbps.
FEATURES
High extinction ratio , NRZ@40Gbps
Low drive voltage, Wide band-width
Compact size with integrated MZM and DFB Laser
APPLICATIONS
High-speed short reach communication
Wide band PD, ROSA, Receiver stress test
SPECIFICATION
| Parameter | Unit | Min. | Typ. | Max. |
| Nominal Wavelength | nm | 1547 | 1550 | 1553 |
| Wavelength Stability/Hour | pm | – | 2 | – |
| DC Optical Power | dBm | – | 3 | 7 |
| Data Rate | Gbps | – | 40 | – |
| Side Mode Suppression Ratio | dB | 35 | – | – |
| Extinction Ratio | dB | 8 | – | – |
| Input Driver Swing | Vpp | – | 1.0 | 2.0 |
| Input Driver Offset | V | – | 0 | – |
| Relative Intensity Noise (f<10GHz) | dB/Hz | – | – | -135 |
| RF Connector | – | K Female (SMA Compatible) | ||
| Operating Temperature | ℃ | 0 ~ 50 | ||
| Storage Temperature | ℃ | -20 ~ 70 | ||
| Relative Humidity | % | 20~90 (Non-condensation) | ||
| Power supply* | – | DC 5V, 1A (Module) | ||
| Dimensions (L×W×H)* | mm | 100×80×20 (Module) |
TX-INP-1-2-3-4-5-6-7
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Package | NRZ Data Rate | Wavelength | Output Power | RF Connector | Fiber Type | Connector |
| M=Module | 40=40Gbps | 15=1550nm | 3=3dBm | K=SMA | P=PM fiber | FA=FC/APC |
| 10=10Gbps | 7=7dBm | S=SM fiber |

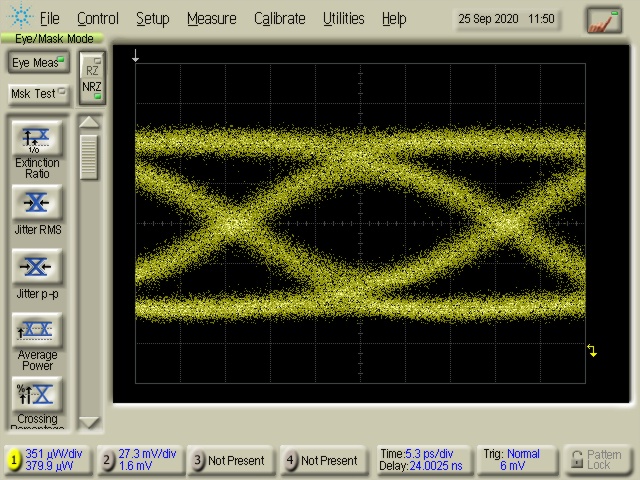

EYE DIAGRAM @>=32 Gbps
