双输入铌酸锂驱动器, 射频功率放大功能; 标准SMA射频连接头, 最高速率43Gbps, 支持市面上常见40G铌酸锂调制器的驱动. 4.5V输出, 功耗低至3.3W. 高达17dB的增益, 20dBm饱和功率输出. 可支持IQ和QAM调制以及双驱型强度调制器.
另外, 可提供OA4SMM4的配套驱动电路.
OA4SMM4, 40Gbps LiNiO3 Modulator Driver, 4.5V 40GHz Broadband Amplifier, Dual Input
The OA4SMM4 is a dual input high performance broadband 43 Gb/s Electro-Absorption optical modulator driver amplifier with very low jitter, 4.5 V amplitude, with excellent gain and group delay flatness, matched to 45 GHz. It is designed for electro-optical test equipment and SONET OC-768 / STM-256 optical modulator driver applications. It also supports IQ and QAM modulation.
Product Highlights
- Dual 4.5V Outputs
- 0.5ps added RMS jitter
- 6ps rise / fall time
- 17dB gain to 45 GHz
- 20dBm saturated output power
- 3.3W power dissipation
- Size: 1.58 x 1.85 x 0.36 inch
Applications
The OA4SMM4 is offered in a small modularized package with superb performance, and is intended for lab use or transponder integration. The OA4SMM4 has gain and power levels that are ideally suited for driving either 40G electro-absorption modulators. The dual driver is well matched so it can be used for differential modulators or with other complex modulation schemes. It has low power dissipation, ample drive signal, very low added jitter, fast rise/fall times, and is easy to use with simple bias voltages.

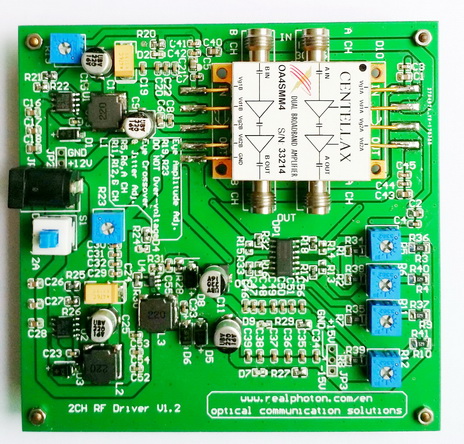

BTW: The driver board for OA4SMM4 is also available upon request.
Specification
| Parameter | Unit | Min. | Typ. | Max. |
| Data Rate | Gbps | – | 43 | – |
| 3dB Bandwidth | GHz | – | 40 | 45 |
| P3dB Output | dBm | 20 | – | – |
| Output Amplitude Swing | Vpp | 2.0 | 4.0 | – |
| Input Amplitude Swing | Vpp | 0.3 | 0.4 | 0.6 |
| Variable Gain | dB | – | 17 | – |
| Added Jitter (RMS) | ps | – | 0.5 | 0.6 |
| Rise / Fall Time | ps | – | 6 | 9 |
| Input, Output Impedance | Ohms | – | 50 | – |
| Signal Output and Couple | – | Single Ended, AC Coupled | ||
| RF Port | – | 1.85 V Type |
Order Information
RFA-Dual-1-2-3-4
| 1 | 2 | 3 | 4 |
| Package | Data Rate | Output Swing | RF Connector |
| E=EVB | 40=40Gbps | 4=4.0Vpp | V=1.85 V Type |
