  • 10G宽带射频驱动器 放大器 7.5V 铌酸锂调制器驱动 EVK-RF-A-10-21-M

10G宽带射频驱动器 放大器 7.5V 铌酸锂调制器驱动 EVK-RF-A-10-21-M

本射频驱动器专门为铌酸锂调制器和电吸收调制器设计, 输出幅度1.5V~7.5V范围可调, 支持最高速率12.5Gbps. 能满足市面上常见调制器的驱动要求, 支持OOK, RZ, NRZ, BPSK, DPSK, Pulse类型的调制. SMA接口, 单一直流12V供电, 极易使用.

产品详情

本射频驱动器专门为铌酸锂调制器和电吸收调制器设计, 输出幅度1.5V~7.5V范围可调, 支持最高速率12.5Gbps. 能满足市面上常见调制器的驱动要求, 支持OOK, RZ, NRZ, BPSK, DPSK, Pulse类型的调制. SMA接口, 单一直流12V供电, 极易使用.

DESCRIPTION

The optical modulator driver provides a high-quality, single-ended voltage to drive an external laser modulator. Typical applications include driving EML, EAM, and Mach-Zehnder style modulators. It amplifies up to 12.5 Gb/s data input signals to >+7.5 Vpp drive levels. The flat gain and flat group delay response yield a high quality, low-jitter electrical drive signal.

FEATURES

Low power, 3.5W, and low jitter
3dB bandwidth, 10GHz; Up to 12.5Gbps
Tunable Amplitude, 2.0~ 7.5Vpp
Turnkey EVB, single power supply, DC12V

APPLICATIONS

EML, EA, MZM Driver, Modulation Fomat OOK/ BPSK/DPSK/NRZ/RZ/Pulse
Microwave Photonics
Pulse generator and amplifier

SPECIFICATIONS

ParameterUnitMin.Typ.Max.
Data RateGbps12.5
3dB BandwidthGHz10
P1dB OutputdBm22
Output Amplitude SwingVpp1.577.5
Input Amplitude SwingVpp0.20.51.5
Variable GaindB26
Gain RippledB-1.5+1.5
Noise FiguredB7
Input, Output ImpedanceOhms50
Input VSWR1.6:12.25:1
Output VSWR2.0:13.0:1
Signal  Output and CoupleSingle Ended
AC Coupled
RF PortSMA Female
Operating Temperature0 ~50
Power supply*DC12V, 0.5A (EVB)
Dimensions  (L×W×H)*mm100×40×25 (EVB)

Note: *The specifications subject to change without notice.

ORDER INFORMATION

RFA-1-2-3-4

1234
PackageData RateOutput SwingRF Connector
M=Module10=10Gbps3=3VppK=SMA
E=EVB40=40Gbps7=7VppG=GPO

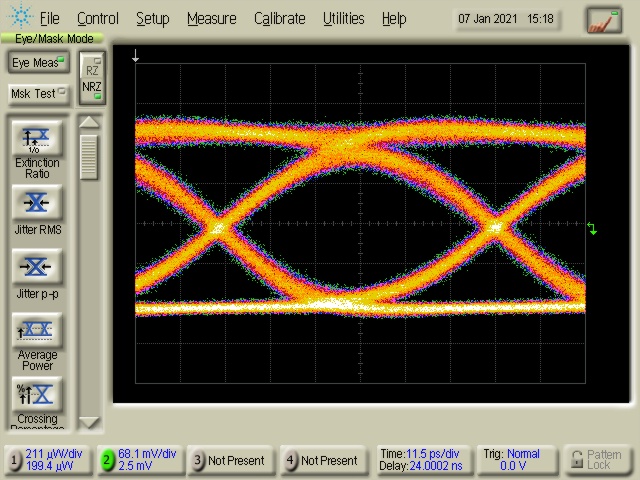

Typical Eye Diagram at 14Gbps
