该调制器可支持40Gbps速率的IQ和QAM调制, 集成PD以进行偏压控制, 双驱形式, 可随意控制各MZM臂的相位延迟关系, 四GPPO公头.

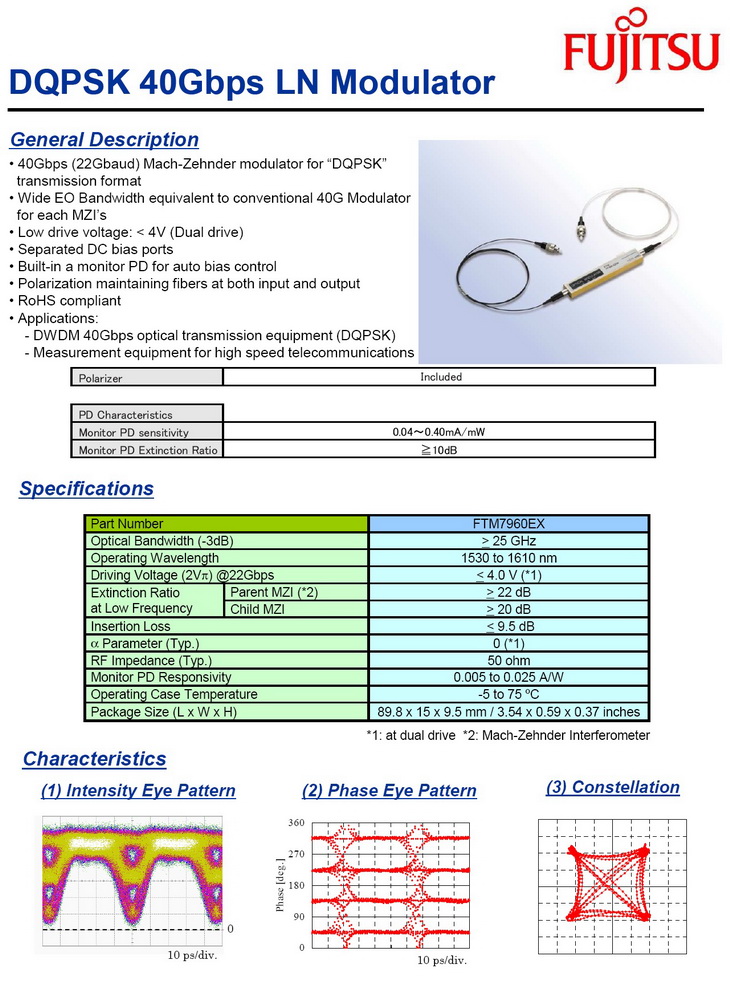

This optical modulator is a Ti:LiNbO3 IQ/QAM Dual-Drive Mach-Zehnder modulator with modulation speed of up to 22.5Gbaud.
Features
- Low Drive Voltage, RF VπVoltage 4.0V@40Gps, Typ.
- 40Gbps(22GBaud) Mach-Zehnder Modulator Using Ti-diffused LiNbO3 Waveguide Technology for QPSK/QAM Transmission Format.
- Separated DC Bias Port, Built-in Monitor Photodiode for Auto Bias Control
- Low Insertion Loss, ≤9.5dB Typ.
- Dual Drive, GPPO Male x 4.
- Polarization Maintaining Fiber at Both Input and Output
Applications
- 40Gps DWDM DQPSK Optical Transmission System
- Measurement Equipment for High Speed Telecommunications, QAM Modulation
