住友40G速率强度调制器,双GPPO射频口驱动, 可同时支持单驱或双驱. 9dB低插入损耗, 4.0Vpp低驱动电压(单驱模式).

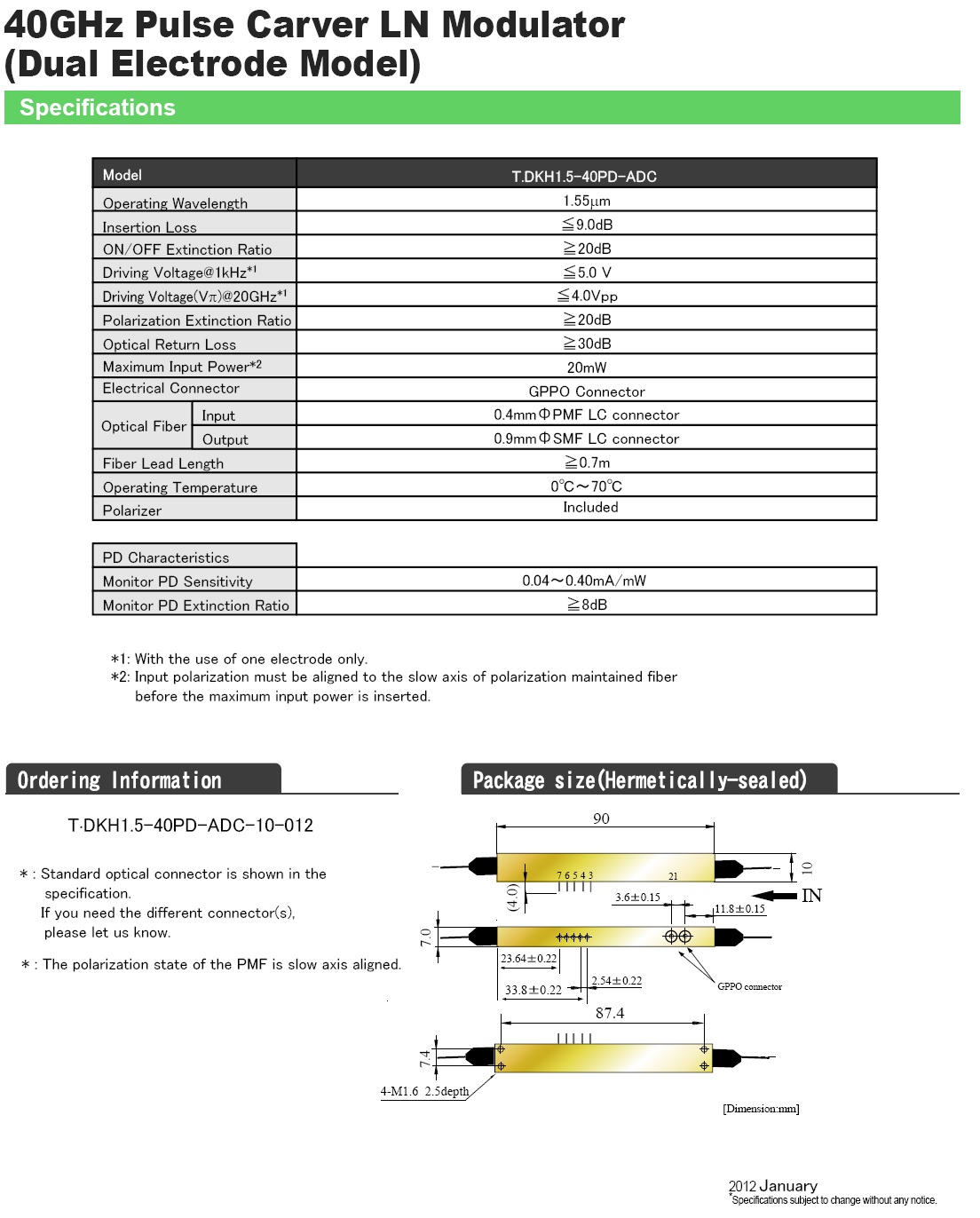

40Gbps Intensity Modulator, Sumitomo T.DKH1.5-40PD-ADC
40Gbps Intensity Modulator with the Features of
• Low Drive Voltage, RF VπVoltage 4V@20GHz, Typ. at Single Drive Mode.
• C and L-Band Operation.
• Enhanced E/O Bandwidth for up to 40 Gb/s Modulation Speed
• Low Insertion Loss, 9.0dB Typ.
• Integrated Monitor Photodiode.
• Supports Both Dual-drive and Single-drive.
