住友Sumitomo(又名Sumicem)40G速率强度调制器,推挽型单GPO射频口驱动.插入损耗典型值5.5dB, 5Vpp低驱动电压. 3dB带宽超过20GHz, 得益于其缓慢下降的带外频响特性, 该型号在NRZ模式下工作速率可达40Gbps.

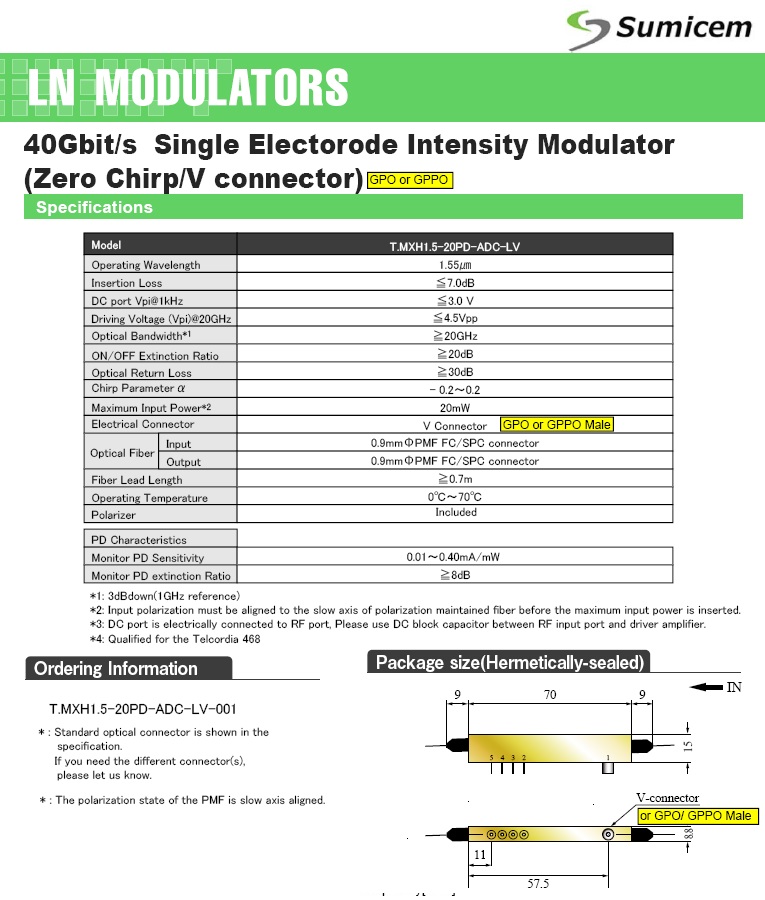

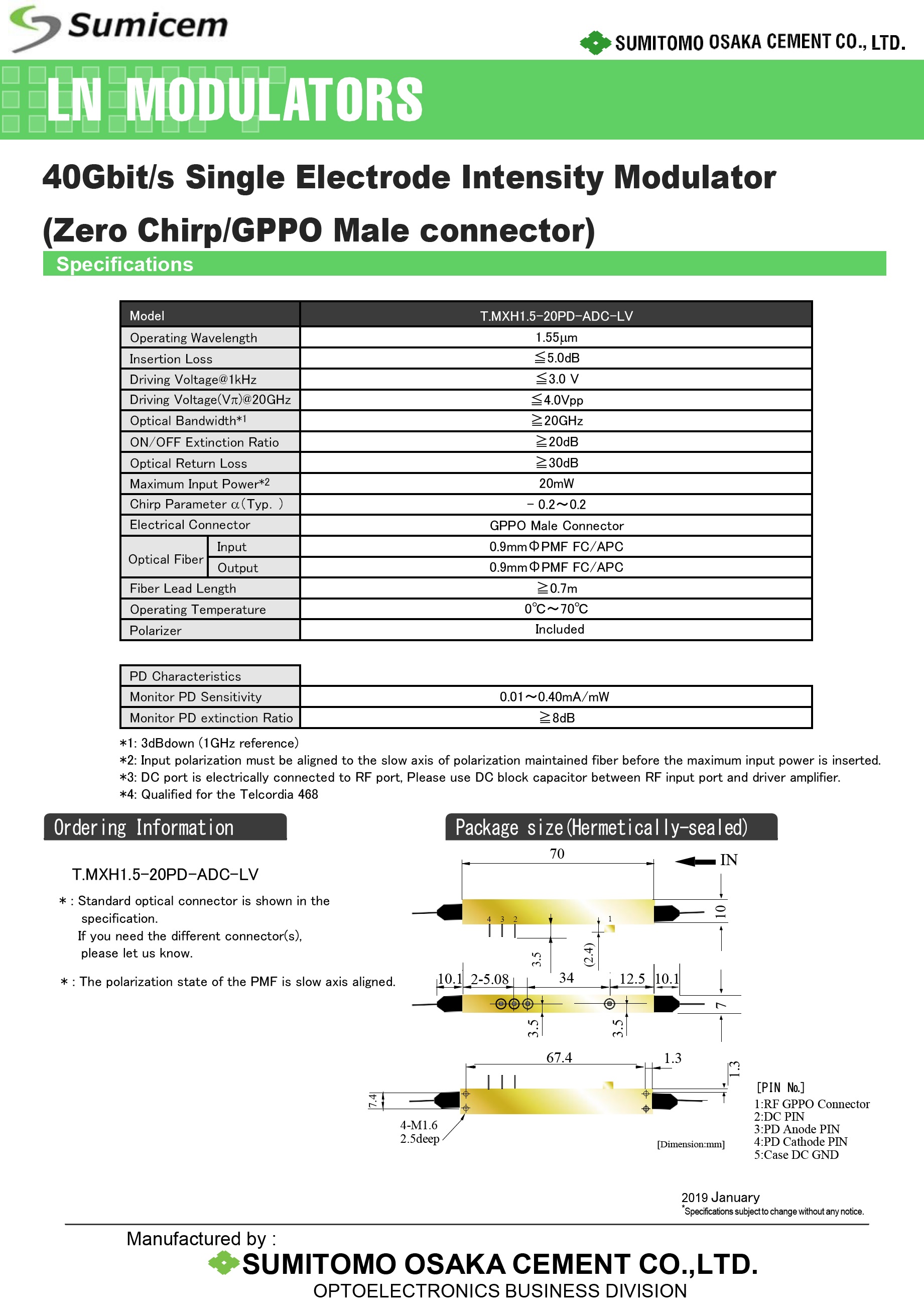

40Gbps Intensity Modulator with the Features of
- Low Drive Voltage, RF VπVoltage 5.5V@10GHz, Typ.
- C and L-Band Operation
- Enhanced E/O Bandwidth for up to 40 Gb/s Modulation Speed
- Low Insertion Loss, 5.5dB Typ.
- High Extinction Ratio, 28dB Typ.
- Integrated Monitor Photodiode
- Available with Zero Chirp
