富士通FTM7937EZ双臂RF驱动, 适用调制格式DPSK/NRZ, 马赫泽德调制器,最高速率可达40Gbps; 低电压驱动; C+L波段工作, 高消光比.

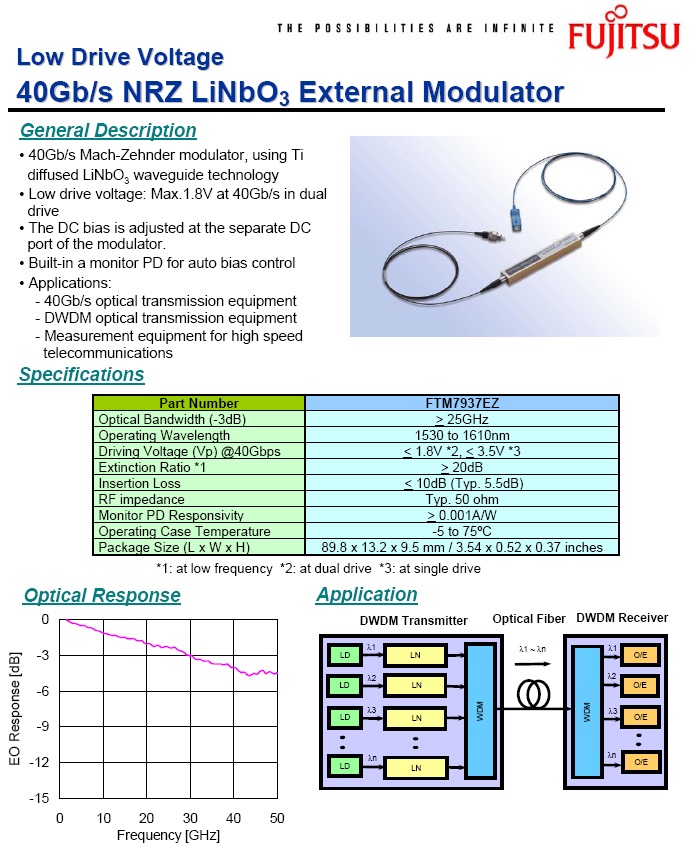

40Gbps Intensity Modulator, Fujitsu FTM7937EZ, Lithium Niobate Fiber Modulator
This optical modulator is a Ti:LiNbO3 Dual Drive Mach-Zehnder modulator with modulation speed of up to 43 Gb/s. This optical modulator integrates a monitor PD chip and coupler function for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena.
40Gbps Intensity Modulator with the Features of
• Low Drive Voltage, RF VπVoltage 3.6V@40Gps Single Drive, 1.8V@40Gbps Dual Drive, Typ.
• 40Gbps Mach-Zehnder Modulator Using Ti-diffused LiNbO3 Waveguide Technology
• Separated DC Bias Port
• Low Insertion Loss, ≤10dB Typ.
• Applications – NRZ, DPSK, BPSK, OBD 40Gbps DWDM Optical Transmission System
• Integrated Monitor Photodiode for Auto Bias Control
