PIN探测器, 内置限幅跨阻放大器, 典型3dB带宽36GHz. 光纤输入, 射频SMA/K口AC耦合输出. 高带宽, 高转换增益, 同时覆盖O, C, L超宽工作波段. 支持NRZ, OOK格式. 另外, 也可提供不带跨阻放大的版本.
DESCRIPTION
The high speed photo-receiver Module consist of the key module, high speed PIN-TIA receiver, which is a differential front-end with high differential gain and a typical bandwidth of 36GHz.The photo-receiver module contains waveguide-integrated PIN photodiode (PD) and a single chip and limiting amplifier (LA) with limiting output buffer. The incorporated blocking capacitors enable AC output coupling. Its ease of use makes it ideal for Labs and Research.
FEATURE
- Sensitivity, typical -16dBm, O, C&L Band
- Typical 36GHz 3dB cut-off frequency
- Output voltage Max. 320mVpp
APPLICATION
- NRZ, OOK, PSK Format, up to 40GHz
- 43Gbps Optical Transceiver
- Radio Over Fiber
- Testing and Measurement
SPECIFICATION
| Parameter | Unit | Min. | Typ. | Max. |
| Operating Wavelength | nm | 1300 | 1550 | 1620 |
| 3dB Bandwidth | GHz | – | 36 | – |
| Optical Input Power Range | dBm | -16 | -8 | +3 |
| Conversion Gain | V/W | 200 | 600 | 1000 |
| Maximum Output Voltage Swing | mVpp | – | 320 | – |
| Photodiode DC Responsivity | A/W | 0.4 | 0.6 | – |
| Bit rate | Gbps | – | 40 | – |
| Equivalent input noise density | pA/√Hz | – | 18 | 25 |
| Photodiode dark current/PD | nA | – | 10 | 1000 |
| Optical Overload | dBm | +3 | +4.6 | – |
| Sensitivity | dBm | Typ. -12(@1550nm); -7(@1310nm) | ||
| Trans-Impedance Amplifier Elimination | – | Optional | ||
| Signal Output and Couple | – | Single Ended, AC Coupled | ||
| RF Output Port | – | 2.92mm (SMA and K Type Compatible) | ||
| Optical Fiber and Connector | – | SM28-e, FC/APC | ||
| Operating Temperature | ℃ | 0 ~50 | ||
| Power supply* | – | DC 5V, 0.2A | ||
| Dimensions (L×W×H)* | mm | 100x80x20(Module ) |
ORDER InFORMATION
RX-PD-1-2-3-4-5-6
| 1 | 2 | 3 | 4 | 5 | 6 |
| Package | Bandwidth | Wavelength | TIA | Electrical Interface | Connector |
| M=Module | 35=35GHz | C=C band | T=TIA | A=AC Coupled | FA=FC/APC |
| 10=10GHz | O=O band | X=No TIA |

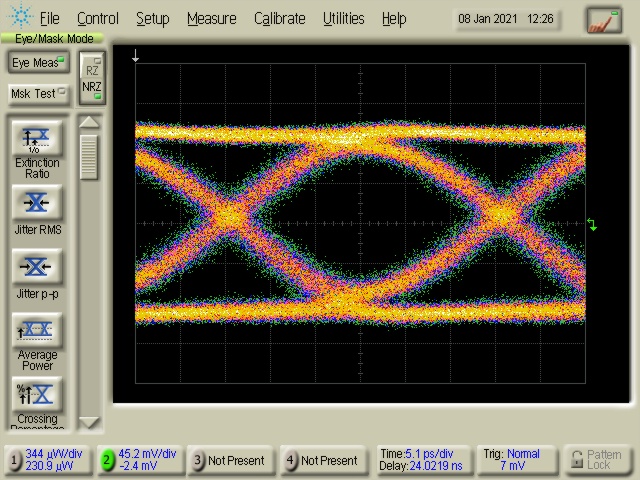

EYE DIAGRAM ( NRZ at 32Gbps )
