  • 10GHz模拟探测接收模块, PIN-TIA线性光电探测器 , 覆盖C, L & O波段

10GHz模拟探测接收模块, PIN-TIA线性光电探测器 , 覆盖C, L & O波段

3dB典型带宽11GHz, 可用于微波光子通信; 射频SMA/K口. 低失真, 线性PIN-TIA模拟探测器, 超宽工作波段1250~1600nm, 宽响应范围, 灵敏度达-20dBm,响应度0.8A/W, 跨阻放大输出最高可达1Vpp.

产品详情

3dB典型带宽11GHz, 可用于微波光子通信; 射频SMA/K口. 低失真, 线性PIN-TIA模拟探测器, 超宽工作波段1250~1600nm, 宽响应范围, 灵敏度达-20dBm,响应度0.8A/W, 跨阻放大输出最高可达1Vpp.

DESCRIPTION

The Module is a photo-receiver module designed for RF over Fiber, and broadband RF transmission or digital telecommunication using single mode optical fiber. The module utilizes a high input power, low distortion PIN photodiode and linear TIA that provides optical to RF conversion out to the frequency range beyond 10 GHz. This compact, cost-effective receiver module offers dual power supply, which means Adapter or Battery supply is switchable. Its ease of use makes it ideal for Labs and Research.

FEATURE

• Wide Wavelength Range, O, C&L Band

• 3dB Bandwidth, Typical 10GHz

APPLICATION

  • RZ, NRZ format, up to 10GHz
  • Low Distortion Analog Links
  • Testing and Measurement

SPECIFICATION

ParameterUnitMin.Max.
3dB Cut-off FrequencyHz30K10G
Operating Wavelengthnm12501600
Optical Input Power RangedBm-18+2
Maximum Output VoltageV1.0
Photo-diode ResponsivityA/W0.70.8
Photo-diode Dark Current (25Deg.C)nA1
TransimpedanceOhms400600
Linear Input RangedBm0
Average Equivalent Input NoisepA/rt Hz1318
Signal  Output and Couple50Ω, DC Coupled
RF Output Port2.92mm, K Type, Female
Optical Fiber and ConnectorSM28-e, FC/APC
Operating Temperature0 ~50
Power supply*Adapter DC 5V/0.5A
Dimensions  (L×W×H)*mm100×80×20

ORDER InFORMATION

RX-PD-1-2-3-4-5

123456
PackageBandwidthWavelengthTIAElectrical InterfaceConnector
M=Module10=10GHzC=C bandT=TIAA=AC CoupledFA=FC/APC
O=O bandX=No TIAD=DC Coupled

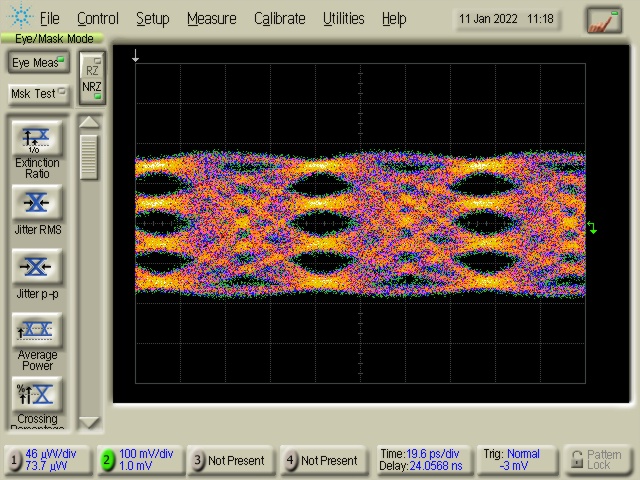

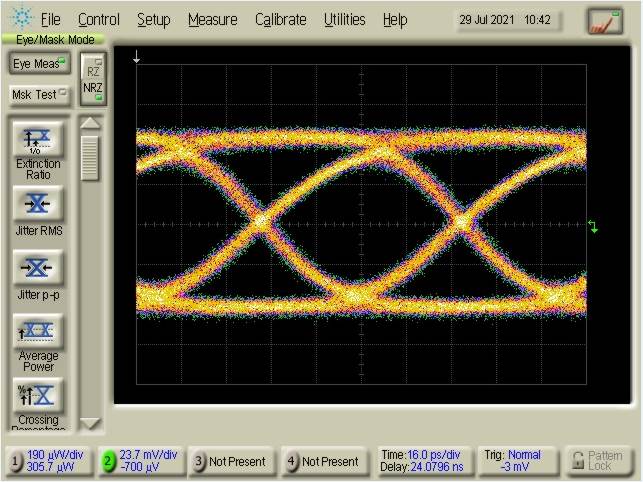

EYE DIAGRAM (NRZ at 10Gbps and 14Gbsp)
