本光发射机性能优异, 带宽范围广, 最高速率可达40Gbps. 根据用户的不同要求, 可支持NRZ/OOK/RZ/BPSK/DPSK/ODB/Pulse/PAM4多种格式, 速率从10G~40G可选, 支持单臂或者双臂驱动, 不仅性能优异, 而且结构紧凑, 极小占用用户的工作空间.
DESCRIPTION
The optical MZM (Mach-Zehnder Modulator) transmitter is a high performance modulation evaluation unit that allows user to produce optical signals with complex modulation schemes (NRZ, OOK, PSK). And PAM4 performance is an option available upon request. It integrates high bandwidth optical modulator capable of dealing with data rate up to 40Gbps. It features an embedded bias controller that allows to automatically set the modulator operating point.
FEATURES
C or L band Data-rate up to 40 Gbps
Multi-format NRZ, OOK, RZ, BPSK, DPSK, ODB, Pulse, PAM4
Automatic bias point setup and tracking
APPLICATIONS
Long Haul or Short Reach Optical Transmission
Microwave Photonics
Carrier-Suppressed Single Sideband
Testing and Measurement
SPECIFICATION
| Parameter | Unit | Min. | Typ. | Max. |
| Operating Wavelength | nm | 1530 | 1550 | 1610 |
| Optical Bandwidth | GHz | 10 | – | 32 |
| On/Off Extinction Ratio | dB | 20 | 25 | 40 |
| Insertion Loss | dB | 3.5 | 4.0 | 7 |
| Maximum Data Rate | Gbps | 10 | – | 40 |
| Chirp, Alpha Parameter | dB | 0±0.1(Chirp Free Type) ±0.7(Chirped Type) | ||
| Input Optical Power @ CW | dBm | -15 | 10 | 15 |
| RF-MZI Electrode | – | Single Drive, or Dual Drive | ||
| RF Input Amplitude @50Ω | mVpp | 500 | – | 5500 |
| Bias Control Mode | – | Automatic, Q+, Q-, Null, Peak | ||
| Modulation Format Application | – | NRZ/OOK/BPSK/DPSK/RZ | ||
| Optical Input Option | – | Tunable Laser | ||
| RF Input Port | – | 2.92mm K-Female, 50 Ohms | ||
| Optical Fiber @Input | – | PM1550, FC/APC | ||
| Optical Fiber @Output | – | SM28-e or PM1550, FC/APC | ||
| Back Panel Interface | – | Bias Control Mode Switch | ||
| Operating Temperature | ℃ | 0 ~50 | ||
| Power supply* | – | AC 90~220V | ||
| Dimensions (L×W×H)* | mm | 240x350x65 |
Note: *The specifications subject to change without notice.
*The appearance and the key component vary according to different performance requirements.
ORDER INFORMATION
TX-MZM-1-2-3-4-5-6-7-8
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Data Rate | TX Format | Bias Mode | Drive Electrode | Chirp | Optional 1 | Optional 2 | Connector |
| 10=10Gbps | N=NRZ | QP=Q+ | 1=Single Drive | 0=Zero Chirp | DR=RF Driver | TL=Tunable Laser | FA=FC/APC |
| 20=20Gbps | P=PSK | QN=Q- | 2=Dual Drive | 1=Chirped | N= No DR | N=No TL | NA=None |
| 40=40Gbps | A=PAM4 | PK=Peak | |||||
| NL=Null |

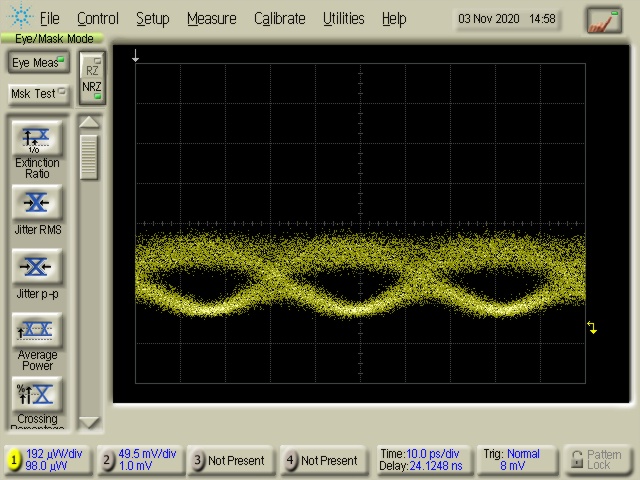

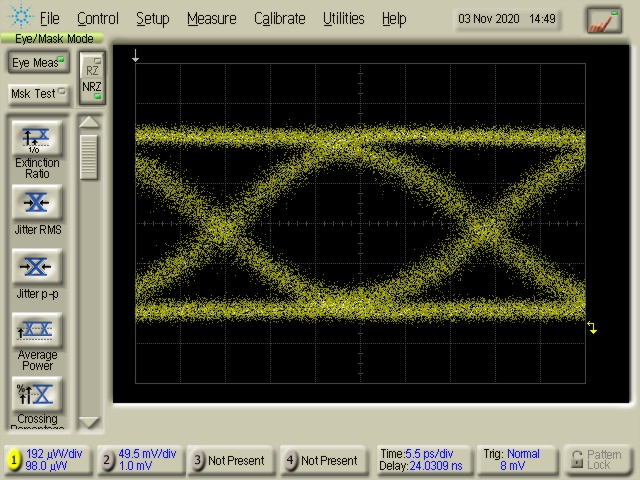

EYE DIAGRAM NRZ Eye Diagram@32Gbps & PSK Eye Diagram@32Gbps

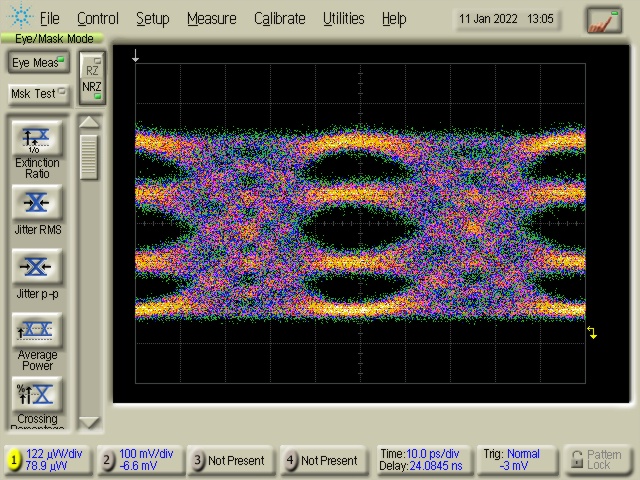

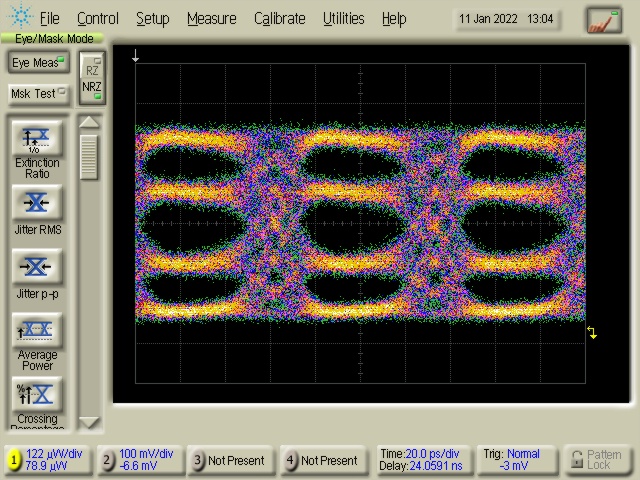

EYE DIAGRAM (PAM4 at 14GBaud & 20GBaud )
