富士通FTM7939EK单臂RF驱动马赫泽德调制器, 适用调制格式DPSK/NRZ, 最高速率可达40Gbps, 极低的插入损耗5dB以下; 低电压驱动;C+L波段工作, 高消光比. 紧凑型, 小尺寸.

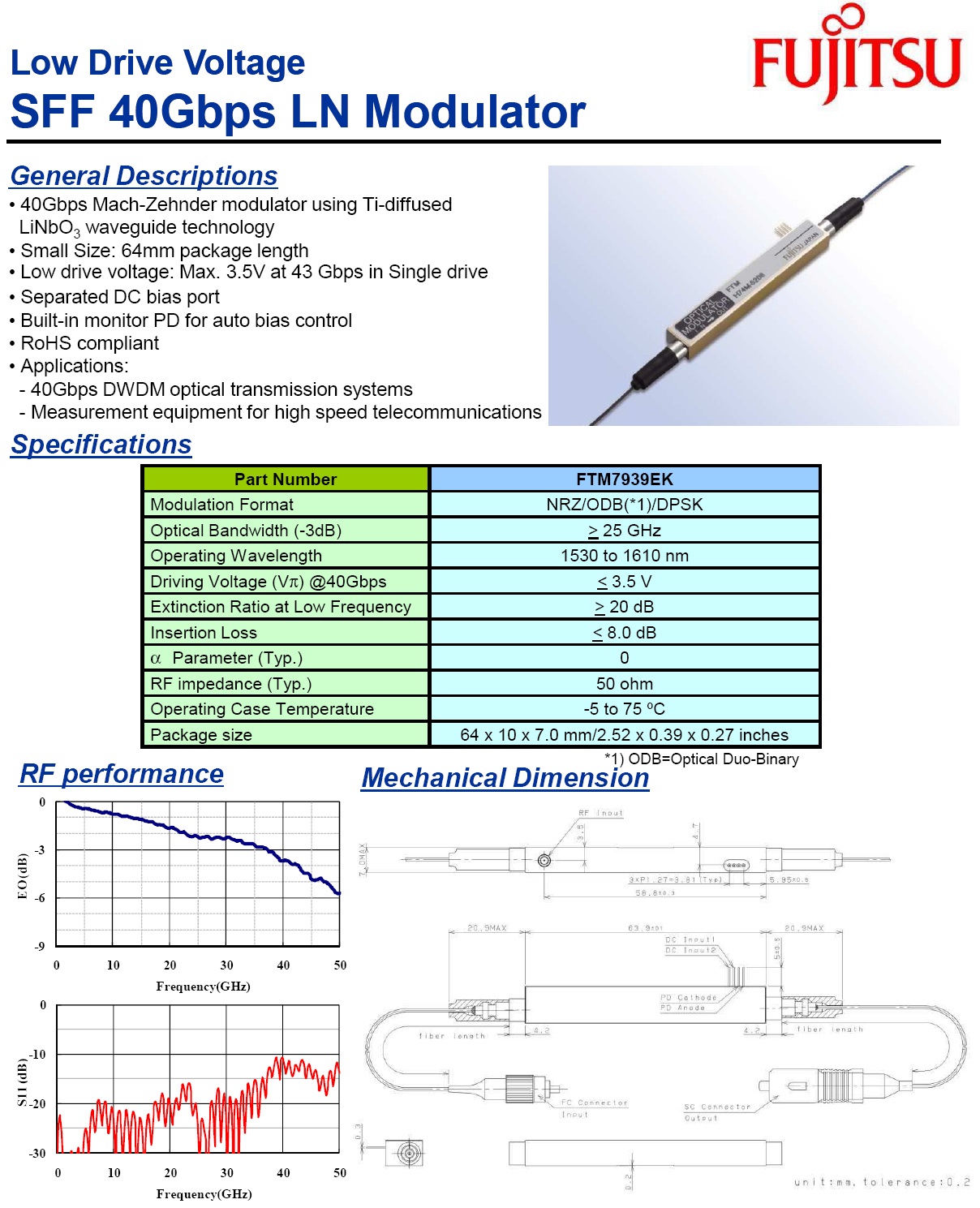

40Gbps Intensity Modulator, Fujitsu FTM7939EK, Lithium Niobate Fiber Modulator
40Gbps Intensity Modulator with the Features of
• Low Drive Voltage, RF VπVoltage 3.5V@43GBaud, Typ.
• 40Gbps Mach-Zehnder Modulator Using Ti-diffused LiNbO3 Waveguide Technology
• Separated DC Bias Port for Each Mach-Zehnder Interferometer
• Low Insertion Loss, ≤5dB Typ.
• Separated DC Bias Port and Integrated Monitor Photodiode for Auto Bias Control
• Applications – NRZ, DPSK, BPSK, OBD 40Gps DWDM Optical Transmission System, Measurement Equipment for High Speed Telecommunications
