住友10G速率强度调制器,单GPO射频口驱动. 5dB低插入损耗, 5Vpp低驱动电压.

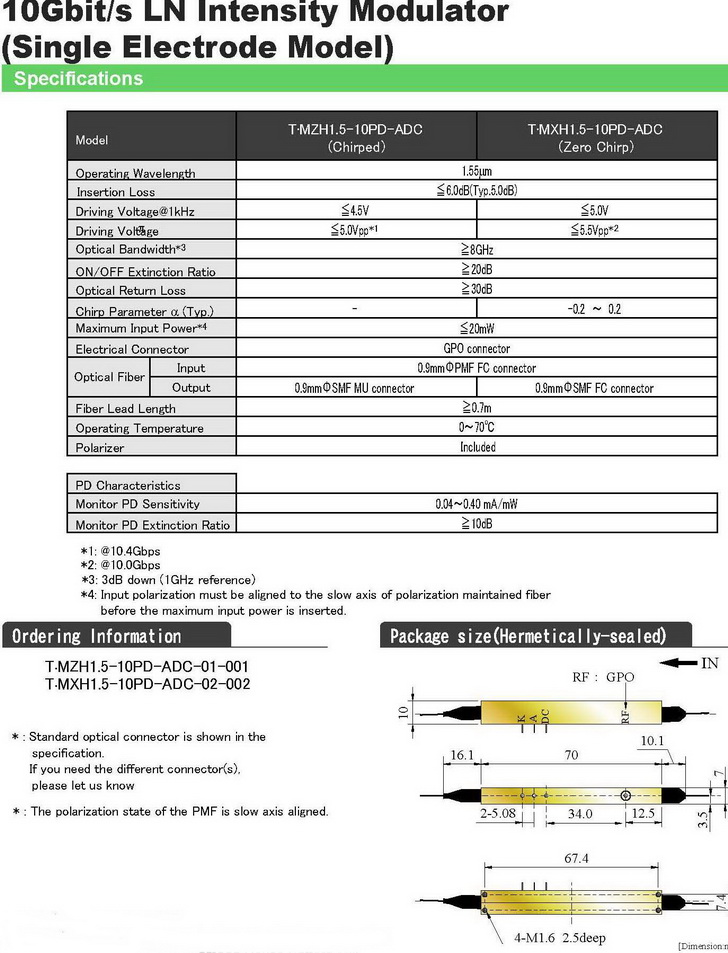

10Gbps Intensity Modulator with the Features of
- Low Drive Voltage, RF VπVoltage 5.5V@10GHz, Typ.
- C and L-Band Operation
- Enhanced E/O Bandwidth for up to 12.5 Gb/s Modulation Speed
- Low Insertion Loss, 5.0dB Typ.
- High Extinction Ratio, 30dB Typ.
- Integrated Monitor Photodiode
- Available with Zero Chirp
